Confirm using the “OK”
button.
Depending on the fault, the transmitters and receivers have to be reset differently.
In the event of transmitter faults:
● A message appears on the display.
Confirm using the “OK”
button.
In the event of severe transmitter faults:
● A message appears on the display.
There is no button available.
Switch off the transmitter
using the stop button, switch it on again and log in.
If the fault persists: Contact ABUS Service. See ABUS Service.
In the event of receiver faults:
● A message appears on the display which begins with “Receiver”.
Switch off the crane at
the mains switch.
Wait at least 60
seconds.
● Message 101 “Receiver disconnected” appears on the display.
Switch on the crane at the
mains switch.
Log in the
transmitter.
If the fault persists: Contact ABUS Service. See ABUS Service.

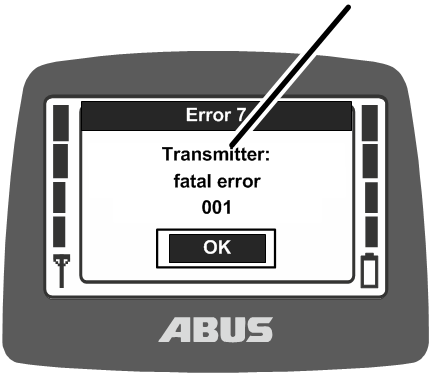

In the event of ABURemote faults:
|
|
Fault code |
|
| |
● A message with the fault code appears on the display.

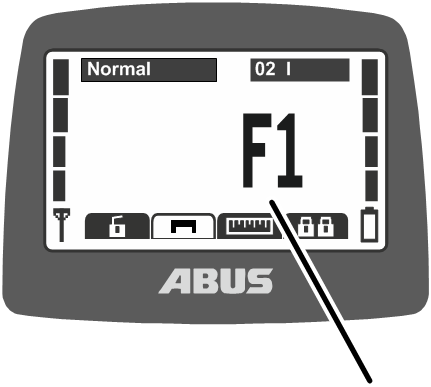

In the event of LIS-SV faults:
|
| |
|
|
LIS fault code |
● The fault from the LIS-SV appears on the display in the same place as where the load is usually shown.
See the LIS-SV product manual.
|
Code |
Fault |
Possible cause |
Eliminating the fault |
|
|
The transmitter cannot be switched on. |
Batteries are discharged. |
Charge the batteries. See Charging the batteries. |
|
|
|
No batteries inserted. |
Insert charged batteries. See Inserting rechargeable batteries. |
|
|
|
Stop button defective. |
Contact ABUS Service. See ABUS Service. |
|
|
The transmitter does not log in (no message appears on the display) |
Exit the transmitter/receiver range. |
Reenter the transmitter/receiver range and log in again. |
|
|
|
The receiver was switched off. |
Switch the receiver on again. |
|
|
|
Radio interference |
Identify and eliminate the cause of the interference. |
|
|
|
|
Change the radio channel. See Changing the radio channel. |
|
|
|
Another transmitter is logged in to the crane in tandem operation. |
Log the other transmitter out from tandem operation. See Operating cranes in tandem operation. |
|
207 208 209 210 |
“Receiver: emergency stop relays faulty” |
The relay for the emergency stop function is faulty. |
Switch the crane off and back on again. If the fault appears again, contact ABUS Service. See ABUS Service. |
|
|
|
The relay for the emergency stop function does not switch on although the receiver switches the signal (e.g. because the hoist limit switch has been activated on the hoist). |
Eliminate the cause for the main contactor of the crane switching off. |
|
105 |
“At start-up do not activate any button” |
A joystick or a flip switch was pressed when switching on. |
Press ENTER, let go of all joysticks and flip switches, and switch on again. |
|
|
|
Joystick or flip switch defective. |
Contact ABUS Service. See ABUS Service. |
|
101 |
“Receiver disconnected” |
The receiver was switched off. |
Switch the receiver on again. |
|
|
|
Radio interference |
Identify and eliminate the cause of the interference. |
|
|
|
|
Change the radio channel. See Changing the radio channel. |
|
|
|
Incorrect application set |
Set the application. See Setting the application of the transmitter. |

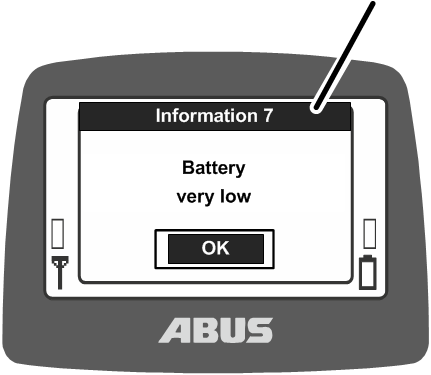

For ABURemote messages:
|
|
Information code |
|
| |
● A message with the information code appears on the display.
|
Code |
Information |
Cause |
Measure |
|
7 |
“Battery very low” |
The batteries are almost empty. |
Replace the batteries. See Inserting rechargeable batteries. |
|
8 |
“Wrong code” |
The code entered is incorrect. |
Press ENTER, and enter the code again. |
|
9 |
“Scanning for free radio channel...” |
The CHANNEL CHANGE button was pressed. |
Wait until the transmitter has found a free radio channel. |
