The radio remote control is comprised of:

─     Transmitter of ABURemote Joystick

─     Receiver

─     Battery charger

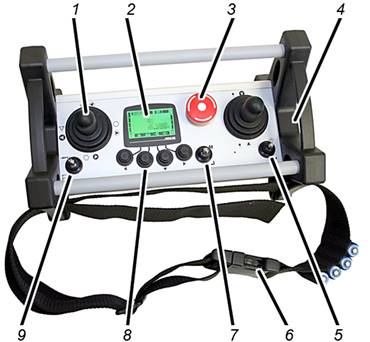

Transmitter of ABURemote Joystick:

─     1: Joystick for crane travel, trolley travel, lifting/lowering

─     2: Display

─     3: Stop button

─     4: Battery compartment

─     5: HORN and CHANNEL CHANGE flip switch

─     6: Hip belt

─     7: MENU and ENTER flip switch

─     8: Arrow buttons / Direct access buttons

─     9: Flip switches “Select trolley” and “Select crane”

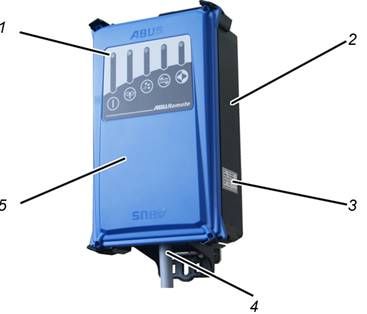

Receiver with relay:

─     1: Status LEDs

─     2: Housing

─     3: Type plate

─     4: Connection cable

─     5: Cover

CAN bus receiver:

─     1: Status LEDs

─     2: Connection cable for CAN bus network (from above)

─     3: Type plate

─     4: Fastening for top-hat rail

─     5: Magnetic base antenna

─     6: Housing

─     7: Mains connection (from below)

─     8: Connection for magnetic base antenna

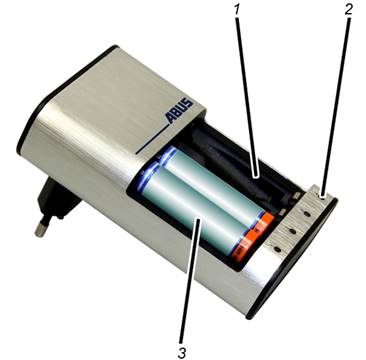

Battery charger

─     1: Charging slots

─     2: Charge state gauge

─     3: Battery
