Rising bars
For basic operation instructions, see the LIS-SV documentation “Load indicator system LIS-SV”.
In operating mode (normal operation), the display continuously shows the current status of the LIS-SV.
|

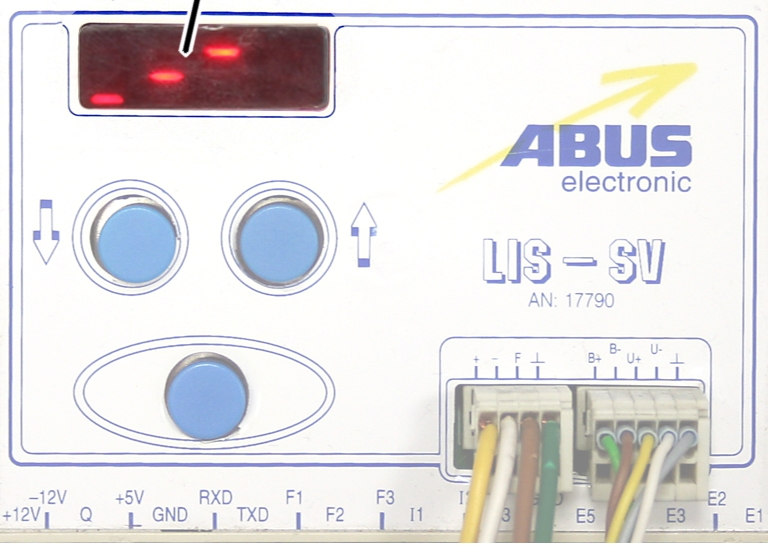

Rising bars |
|
|
| |
● The rising bars indicate that there is a signal for lifting pending at the input E6 of the LIS-SV.
|
Falling bars |
|
|
| |
● The falling bars indicate that there is a signal for lowering pending at the input E2 of the LIS-SV.
|

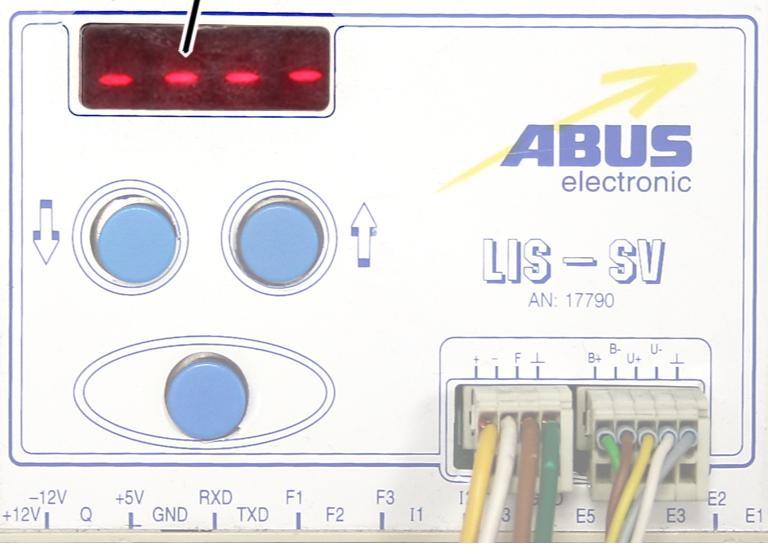

Horizontal bars |
|
|
| |
● The horizontal bars indicate that there is no signal pending at the inputs of the LIS-SV.
When lifting/lowering is released:
|

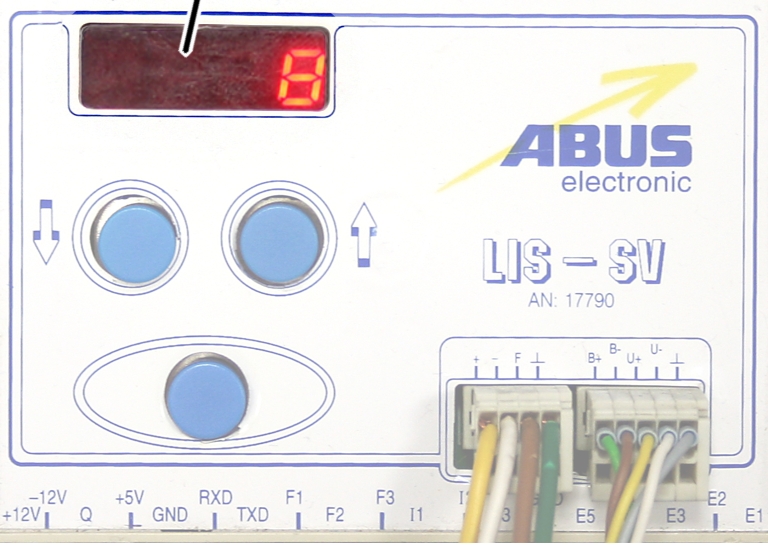

Display of the operating hours |
|
|
| |
● The display shows the current operating hours of the wire rope hoist for several seconds.
If the load hook is in the limit switch range:
|
Display of impulses |
|
|
| |
● The counted impulses of the encoder are shown in the LIS-SV display.
