If the crane does not function with ABUControl, or does not function as expected, a fault in the ABUControl may be the cause.

A message appears on the LED matrix display:

●   The LED matrix display shows the error code and the message from ABUControl as scrolling text.

The text speed can be set in KranOS by ABUControl.

The displayed messages are divided into three categories, depending on their seriousness.

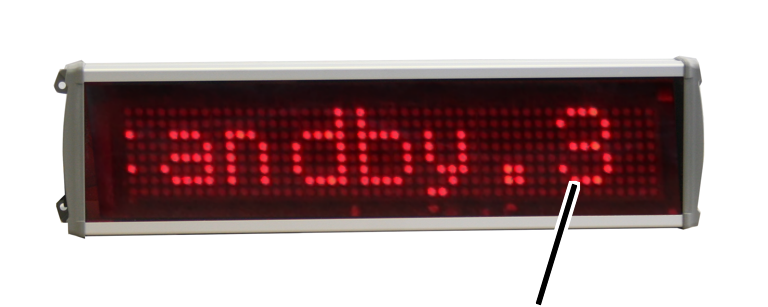

●   The category is displayed at the end of the message as “.1”, “.2” or “.3”.

─     “.3”: Information message. The crane can continue to be normally operated.

To acknowledge the message display, press the emergency stop button or horn.

─     “.2”: Not a serious error. The emergency stop function is triggered, the crane comes to a standstill.

To acknowledge the message display, press the emergency stop button or horn.

If the error does not occur again afterward, the crane can continue to be operated normally.

If the error occurs again afterward, the message is not displayed again. The crane can continue to be operated, however, the crane axis affected by the error can only be operated at slow travel speed.

─     “.1”: Serious error. The emergency stop function is triggered, the crane comes to a standstill.

To acknowledge the message display, press the emergency stop button or horn. If the error arose from a frequency converter, the crane must be switched completely off and then back on again.

If the error does not occur again afterward, the crane can continue to be operated normally.

If the error occurs again afterward, the message is displayed again. The emergency stop function is triggered again.

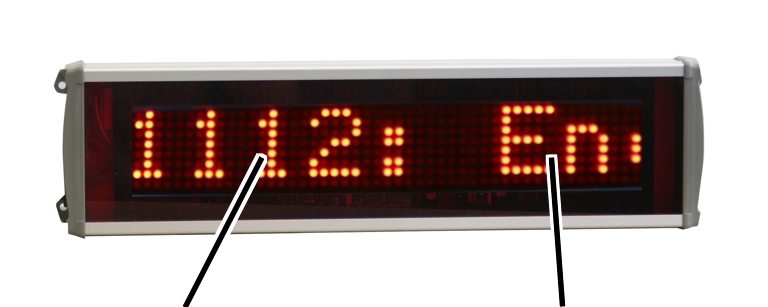

The digits in front of the message indicate where (e.g. on which crane axis) the error occurred and which trolley or hoist (in the case of multiple trolleys on the crane) is affected.

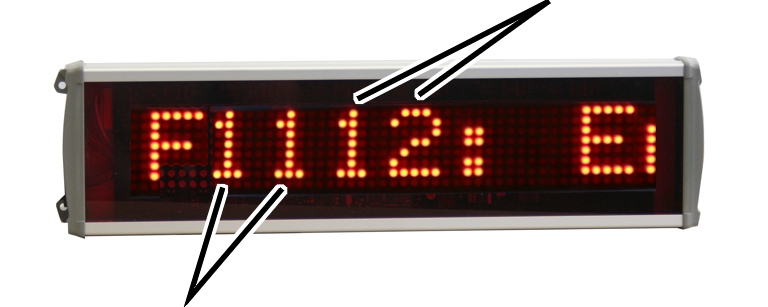

─     First and second digits: number of the hoist, the trolley or the crane drive in combination with the crane axis or operating range

─     Third and fourth digits: error number

This results in the following combinations for the first two digits:

“Hoist drive 2” (F_2_ _) is only used with twin hoists. All other hoists have only one hoist drive (F_1_ _)

“Hoist 2” and “Hoist 3” as well as “Trolley 2” and “Trolley 3” apply to cranes with two or three trolleys.

A crane normally has one frequency converter for both crane travel drives (F14_ _). For cranes with an electronic track guidance system, each of the two crane travel drives has its own frequency converter (F14_ _ and F24_ _). For 4-wheel crane travel drives with greater power consumption of the motors, the four drives can also be divided between two frequency converters.

The LED matrix display shows “No Signal”:

●   The LED matrix display is not receiving a valid signal from the crane control.
